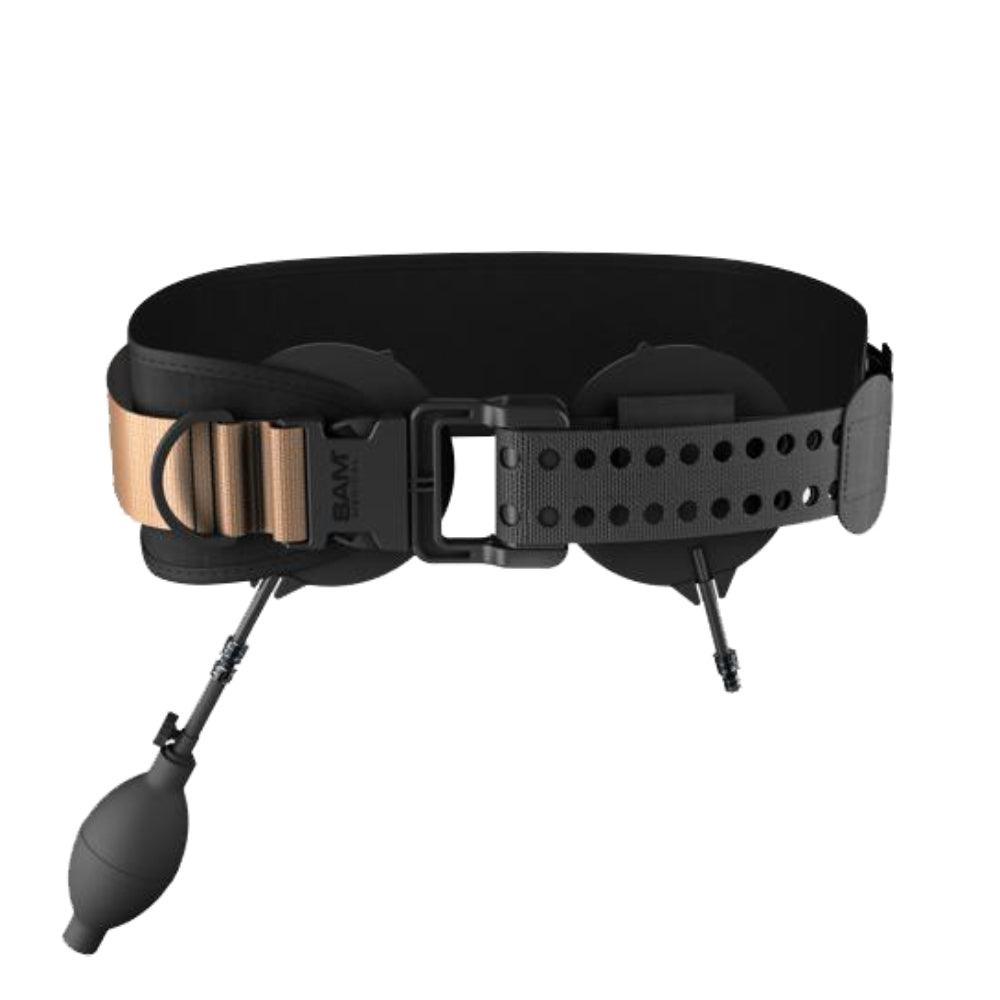

SAM Medical Junctional Tourniquet

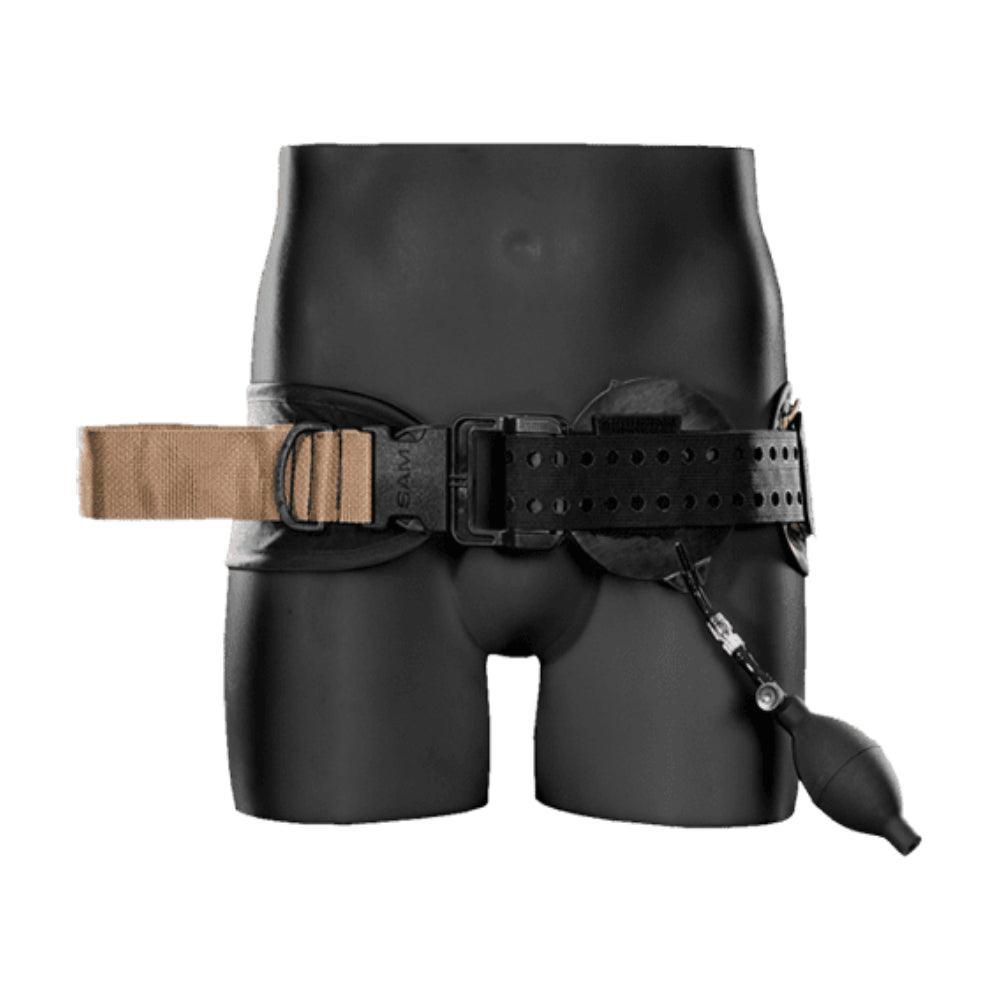

The SAM® Junctional Tourniquet (SJT) is an advanced junctional hemorrhage control device designed to control life-threatening bleeding in areas where a standard extremity tourniquet cannot be effectively applied. Designed for inguinal (groin) and axillary (armpit) hemorrhage, the SAM Junctional Tourniquet can be applied in under 25 seconds and can also provide pelvic stabilization for suspected pelvic fractures.
Developed by SAM Medical, the SJT combines targeted hemorrhage control and pelvic stabilization in a compact trauma device. It is designed for military medicine, tactical medicine, EMS, paramedics, fire/rescue, law enforcement, aeromedical teams, hospitals, emergency departments, remote medicine and advanced trauma response.

Product attributes:

• Rapid Application: Designed to be applied in under 25 seconds for rapid junctional hemorrhage control.

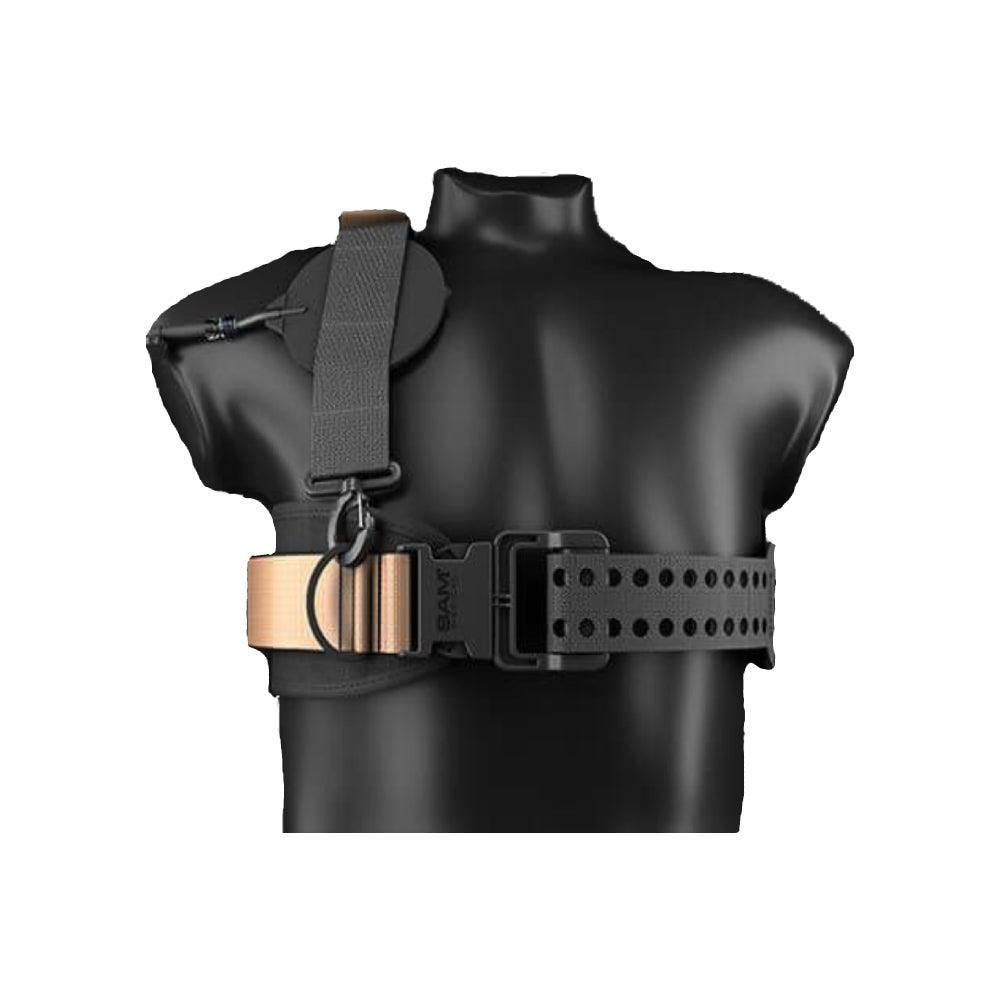

• Inguinal & Axillary Hemorrhage Control: Designed for severe groin and axillary bleeding where a traditional arm or leg tourniquet cannot be effectively positioned.
• Pelvic Stabilization: Provides pelvic stabilization and immobilization for suspected pelvic fractures.

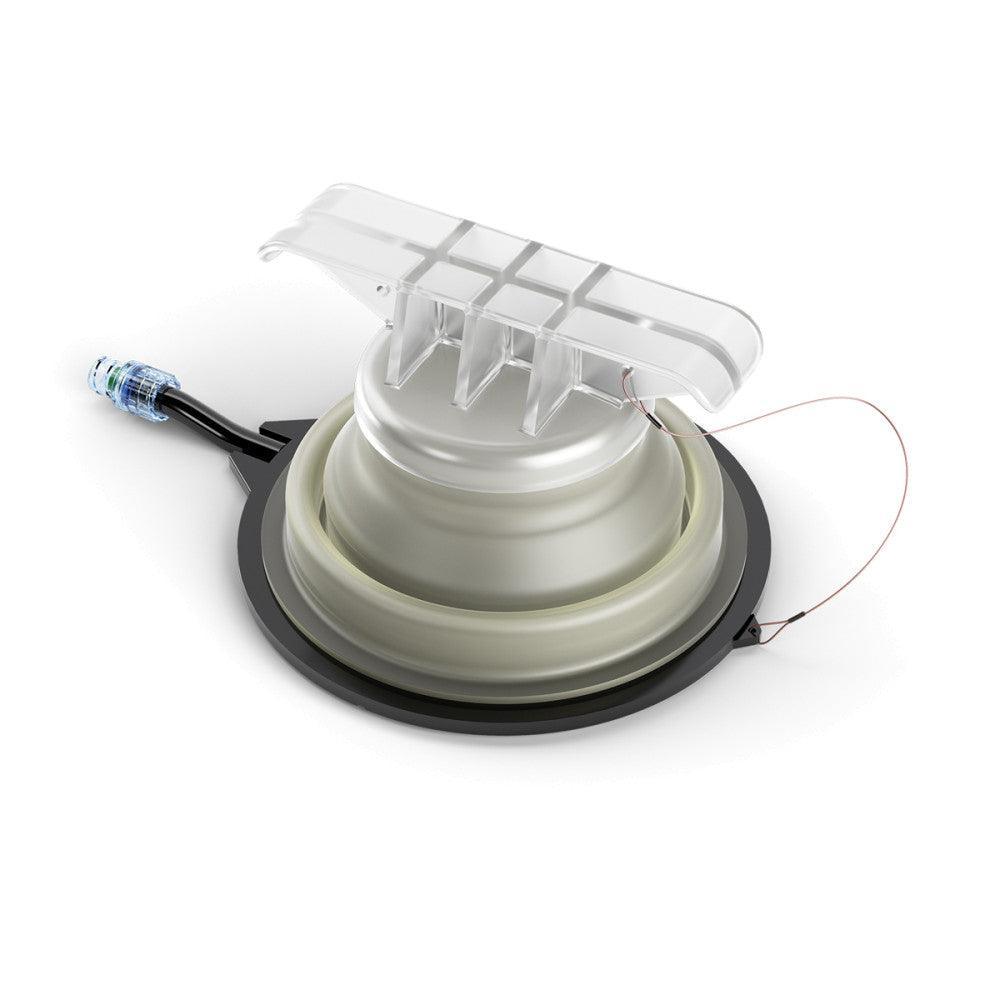

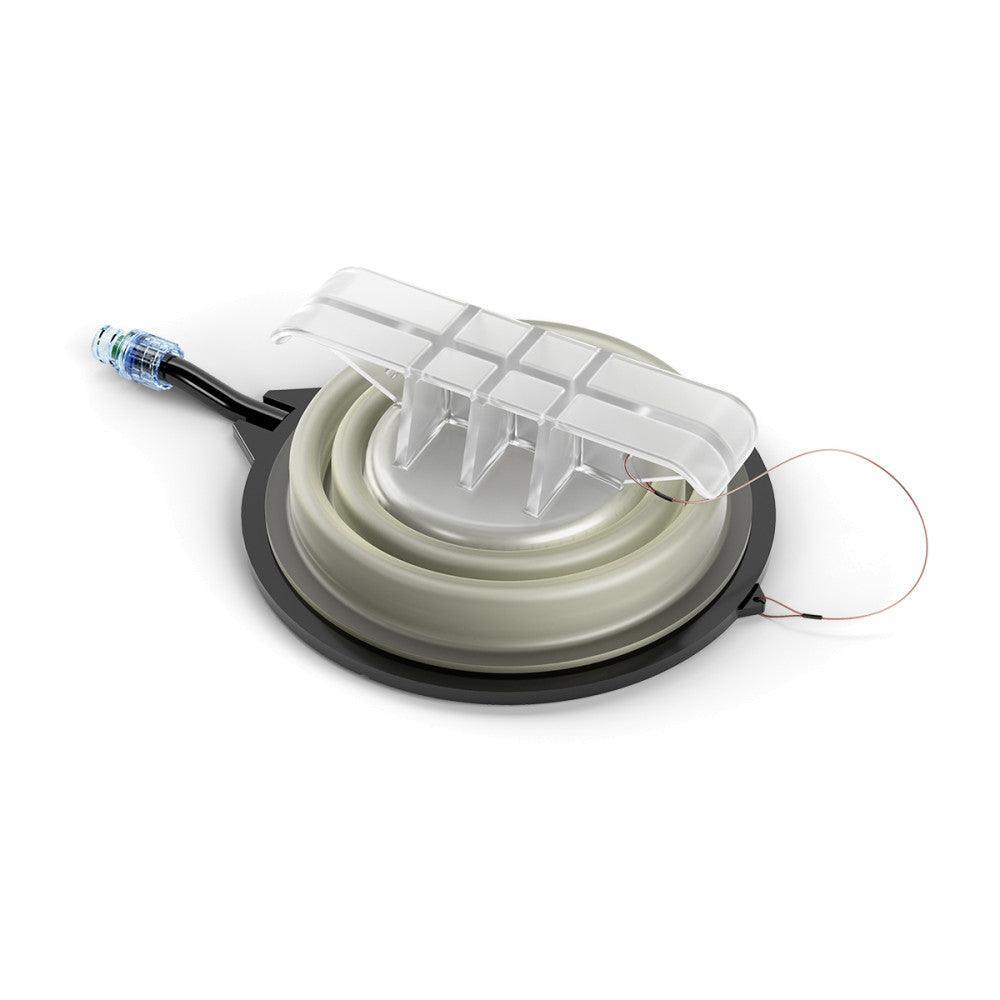

• Target Compression Device (TCD): Provides focused compression directly over the target area to help occlude blood flow.

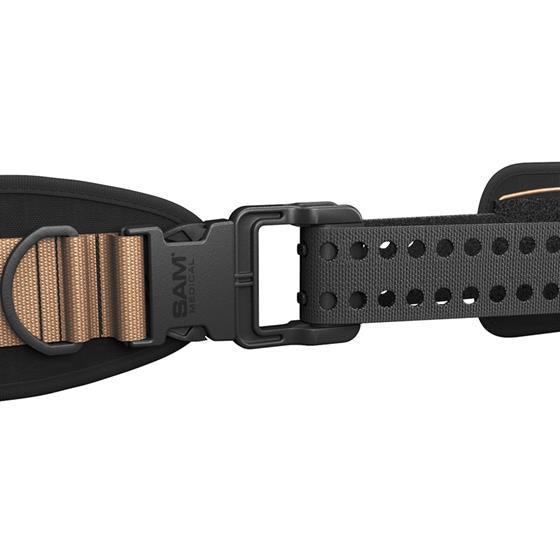

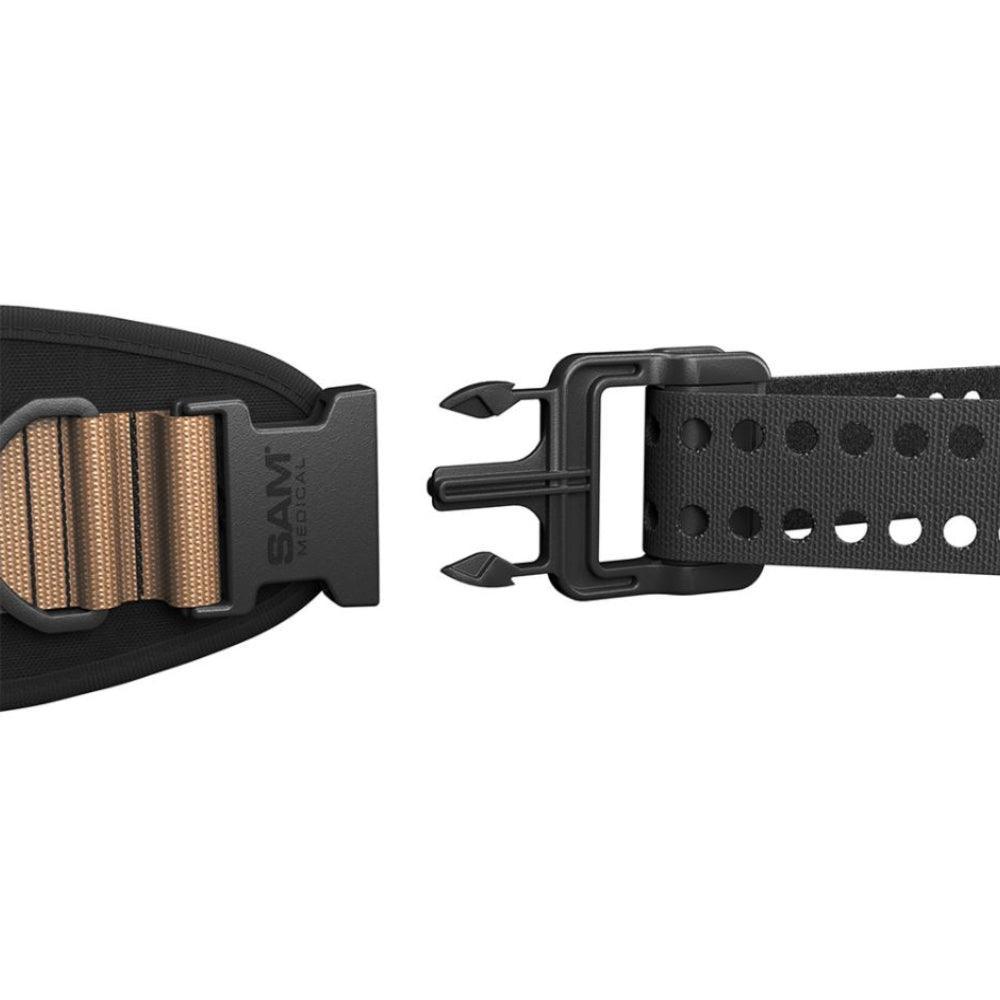

• AUTOSTOP® Buckle: Helps eliminate slack before TCD inflation. When approximately 150 N of circumferential force is reached, the buckle prongs engage through the Precision Strap to help confirm proper application.
• Rapid TCD Inflation: The Target Compression Device can be inflated using the included removable hand pump or a compatible Luer-lock syringe.
• Bilateral Compression: Two TCDs can be used to provide bilateral compression when required.
• Radiolucent Design: Materials are radiolucent except for the two stainless-steel springs within the buckle.
• Compact & Portable: Packs into a compact carrying configuration for trauma kits, tactical medical bags and emergency response equipment.

Available in 2 options
JT401-EN – STANDARD PACK
The SAM Junctional Tourniquet Standard Pack provides the essential components required for junctional hemorrhage control and pelvic stabilization.

Includes:
• 1 × SAM® Junctional Tourniquet
• 1 × Target Compression Device (TCD)
• 1 × Hand Pump
• Instructions for Use
Does not include the TCD Extender or Auxiliary Strap.

JT400-EN – DELUXE PACK
The SAM Junctional Tourniquet Deluxe Pack provides additional components for greater flexibility in advanced trauma, tactical, military and prehospital applications.
Includes:
• 1 × SAM® Junctional Tourniquet
• 2 × Target Compression Devices (TCDs)
• 1 × TCD Extender
• 1 × Hand Pump
• 1 × Auxiliary Strap
• Instructions for Use
The Deluxe Pack provides bilateral compression capability and additional application options through the TCD Extender and Auxiliary Strap.

Additional Information:
Manufacturer: SAM Medical
Product: SAM® Junctional Tourniquet (SJT)
• Packaged Dimensions: 4.75" H × 4.75" W × 8.875" L (12.1 × 12.1 × 22.5 cm)
• Operating Force: AUTOSTOP® Buckle engages at approximately 150 N of circumferential force
• Latex: Does not contain natural rubber latex
• Sterility: Non-sterile
• Use: Single-use device
• TCD Inflation: Removable hand pump or compatible Luer-lock syringe
• Radiolucency: Radiolucent except for two stainless-steel buckle springs
• Country of Origin: Made in USA

MATERIALS
• AUTOSTOP® Buckle: Acetal with stainless-steel springs
• Belt & Auxiliary Strap: Nylon and polypropylene
• TCD: Medical-grade polyurethane with polycarbonate base
• TCD Extender: Polycarbonate
• Hook & Loop Fastener: Nylon
• Thread: Bonded nylon twist
• Hand Pump: PVC-free plastisol

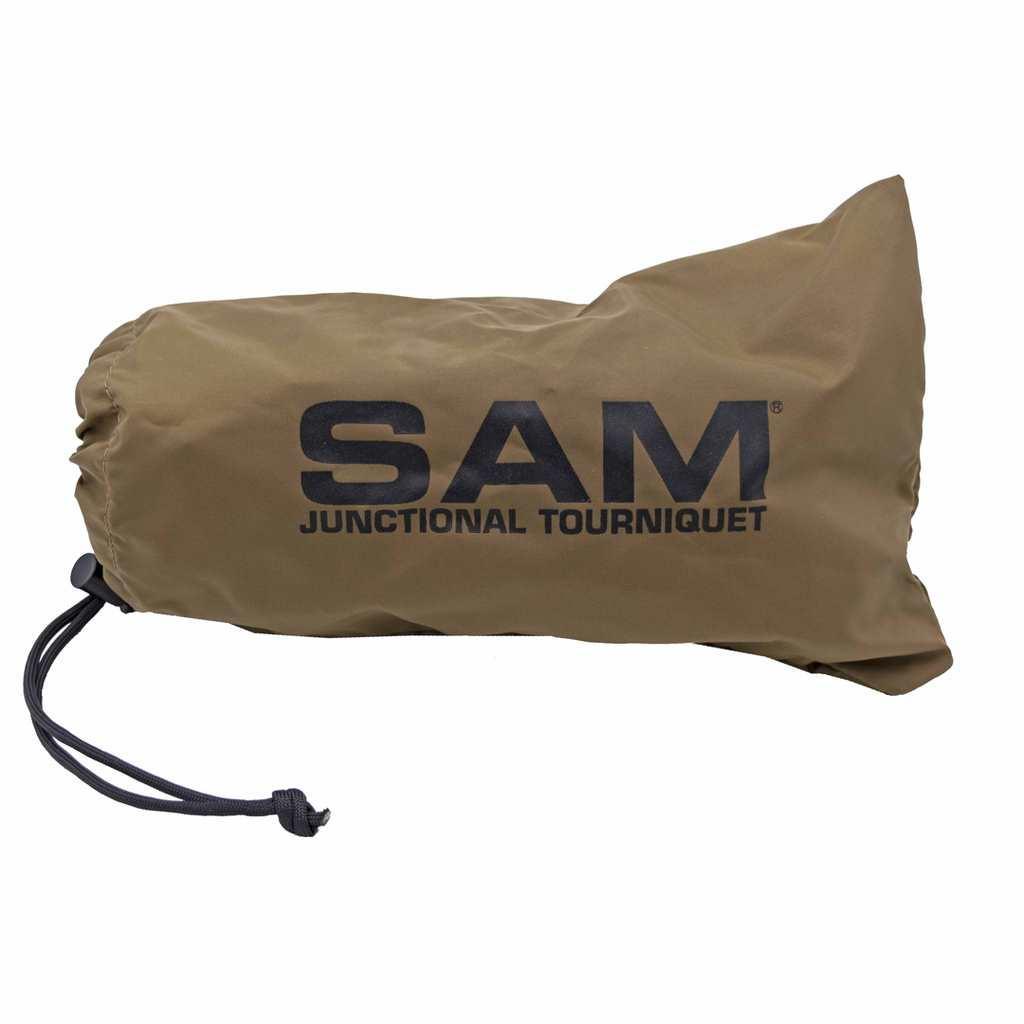

• Bag/Pouch: Nylon
